PETROL STEEL CO., LTD is a professional designer and supplier of PESCO Rope Access Power Ascender Descender Device from China. Our mission is to provide the technical rope access industry with the safest, most reliable, and most cost-effective tools for riggers and climbers who rely on equipment to survive. We offer a full line of ropes, climbing accessories, and safety equipment for you to use while working at PESCO Ascender and other heights. We are your work access and field rescue solution.
It is easy to change over from descend to ascend using PetrolSteel Ascender, and easy to change over from ascend to descend, it is easy for operators to do pre-use checking for using PetrolSteel Power Ascenders, it is easy to use rope access anchors with PetrolSteel Power Ascenders, it is easy to be compatible Ropes for Rope Access Using PetrolSteel Ascender

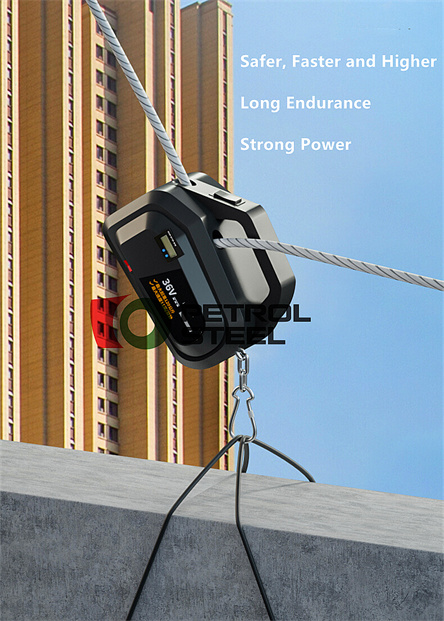

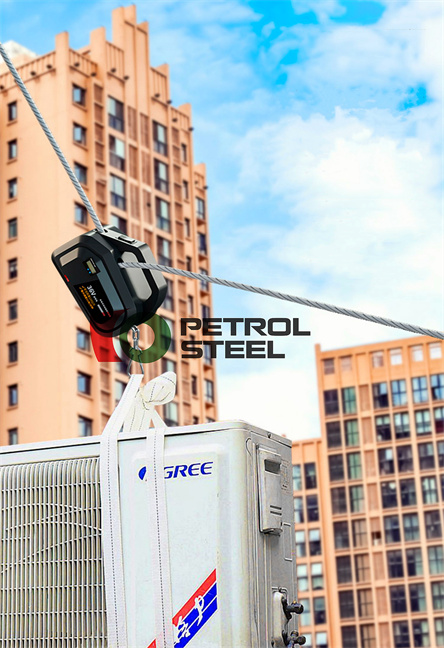

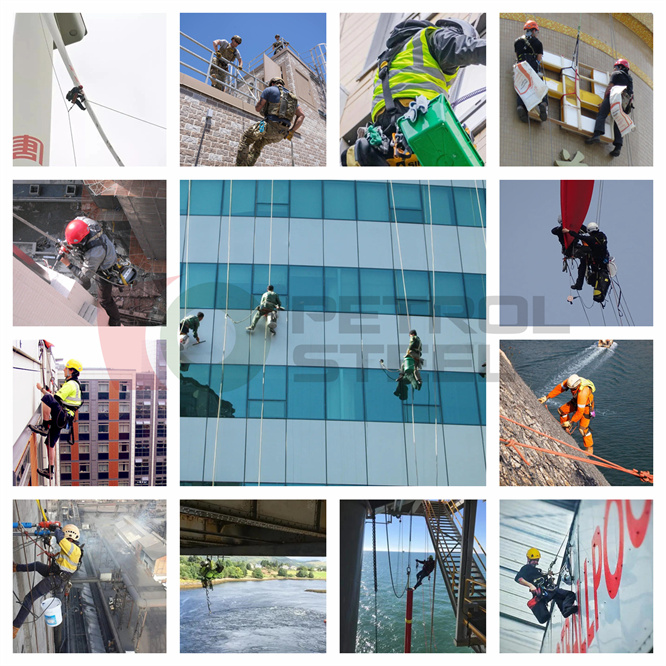

Applications of PESCO Rope Access Power Ascender Descender Device: Power Utilities, Oil & Gas, Offshore Material Lifting Solution, Wind Tower Access, Cell Tower Access, Arborcare, Entertainment Rigging, Construction, Building Maintenance, SPRAT IRATA rope access work support, Confined Space, Sports Recreation, Climbing Ascender, Climbing descender, airborne ascender, airborne descender

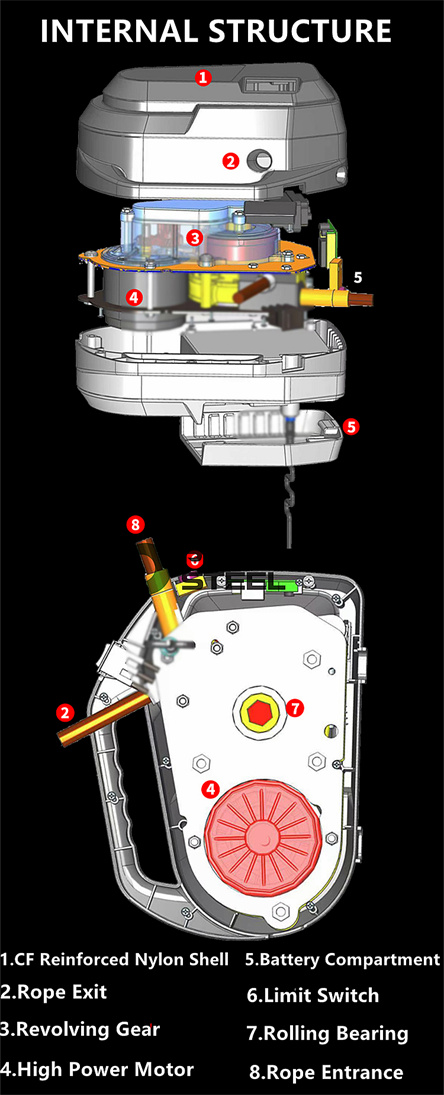

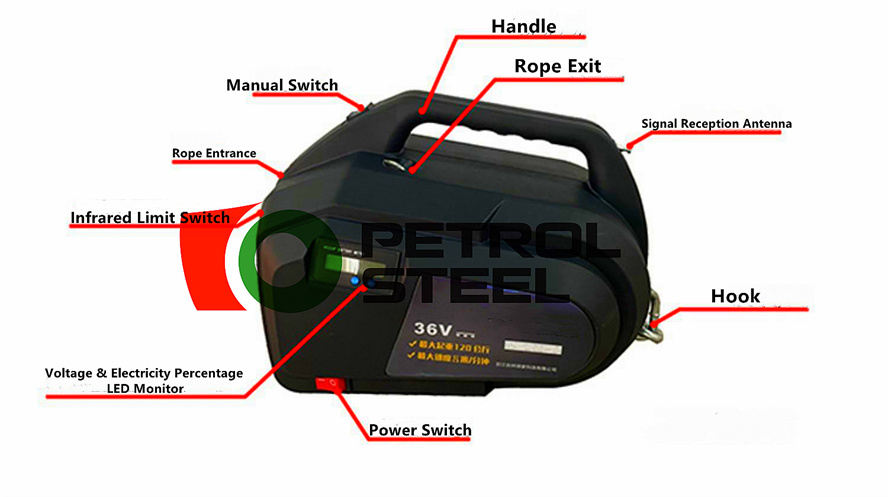

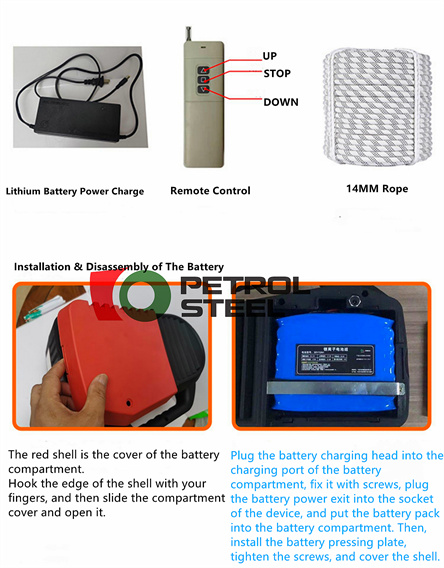

The parts of the PESCO Rope Access Power Ascender Descender Device:

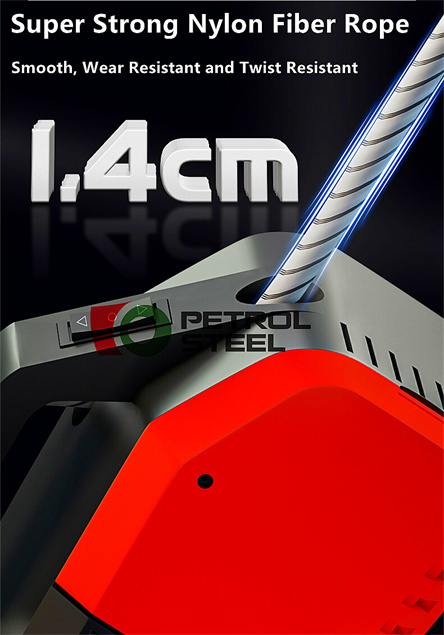

Super Strong Nylon Fiber
Wear Resistant, Smooth, Twist Resistant
Lithium Battery Power Charge

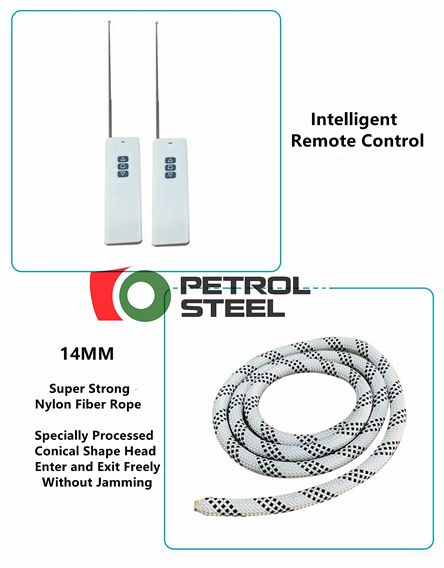

Remote Control
Diameter 14mm
Special Index Sling
The advantages of the PESCO Rope Access Power Ascender Descender Device:
Automatic Lock When Switch off, Super Power, Intelligent Control, Long Endurance, Safer, Faster & Stabler, Portable, Lightweight & powerful
The 12.5mm version is for the main climbing wire and the 11mm is for the fall arrest wire. This rope has a braided sheath (jacket) on the core (core), and the core is made of parallel untwisted fibers. Static ropes have low stretch (3% to 5% stretch). The core bundle contributes to most of the strength of the rope. The load-bearing fibers are located inside the rope and are protected from abrasion by a tightly woven sheath. The core bundles are continuous in length and run in parallel, which not only reduces stretching but also eliminates rotation when in the air.
Currently, static structures are the ropes of choice in most rescue situations due to their better control. A stationary mantle is the best choice for climbing or ascending a fixed line, or for rescue descents and ascents.
The 12.5mm version is for the main climbing wire and the 11mm is for the fall arrest wire. This rope has a braided sheath (jacket) on the core (core), and the core is made of parallel untwisted fibers. Static ropes have low stretch (3% to 5% stretch). The core bundle contributes to most of the strength of the rope. The load-bearing fibers are located inside the rope and are protected from abrasion by a tightly woven sheath. The core bundles are continuous in length and run in parallel, which not only reduces stretching but also eliminates rotation when in the air.
Currently, static structures are the ropes of choice in most rescue situations due to their better control. A stationary mantle is the best choice for climbing or ascending a fixed line, or for rescue descents and ascents.
The Process of Using Instruction of PESCO Rope Access Power Ascender Descender Device

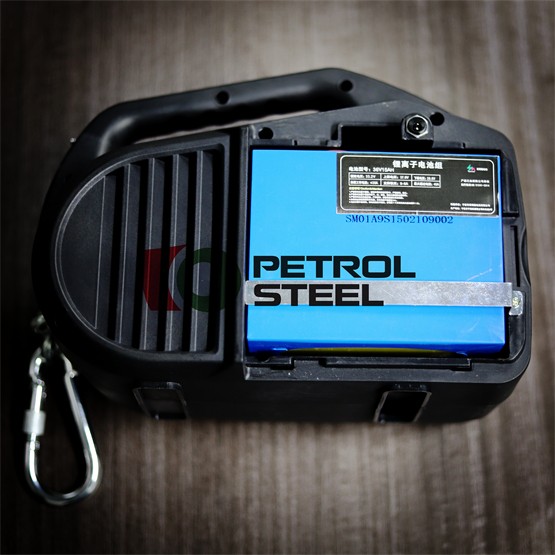

1. Installation & Disassembly of The Battery
The red shell is the cover of the battery compartment.
Hook the edge of the shell with your fingers, and then slide the compartment cover and open it.
Plug the battery charging head into the charging port of the battery compartment, fix it with screws, plug the battery power exit into the socket of the device, and put the battery pack into the battery compartment. Then, install the battery pressing plate, tighten the screws, and cover the shell.
2. Charging

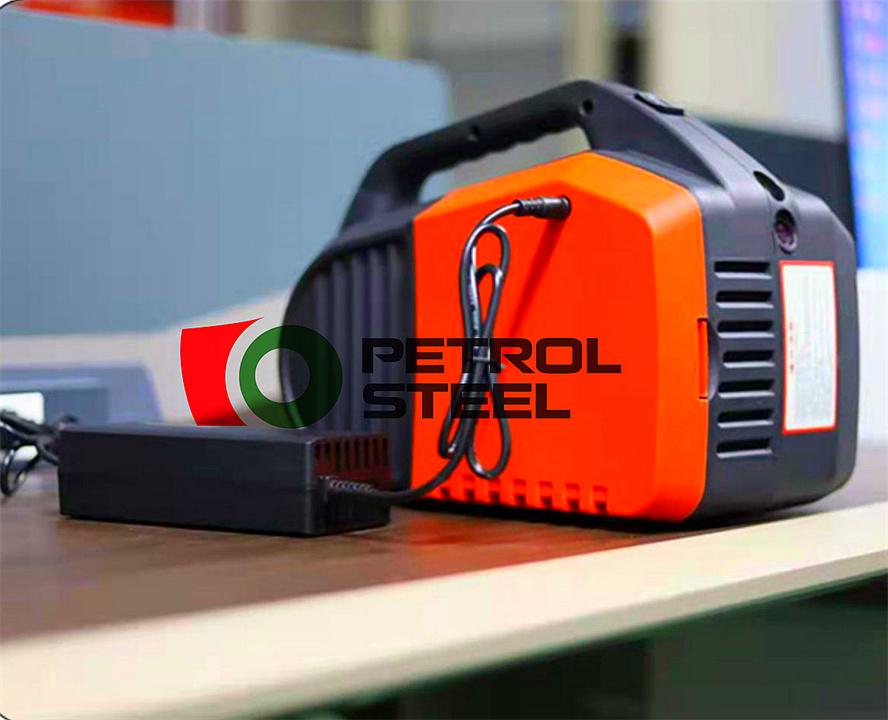

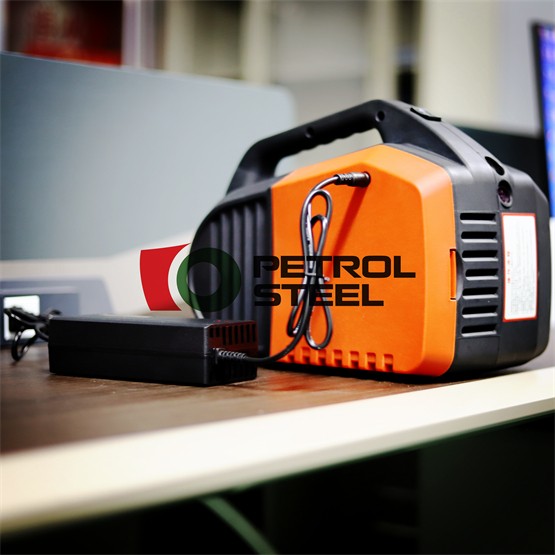

The lithium battery charger is 36V. Plug the charger into the device, and then plug the charger into the 220V power supply.
It is charging when the charger light turns red.
The battery is completely charged when the charger light turns green and the charging will stop automatically.
Please note: the charging time is generally about 4-6 hours. Do not charge for too long a time.

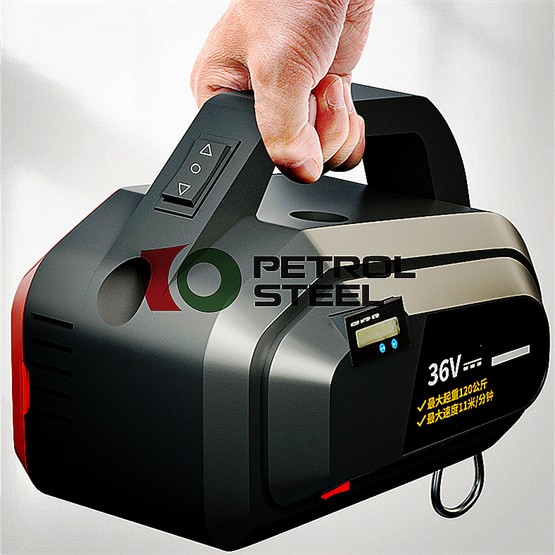

3. Power Switch, Voltage & Electricity Display
The device will stop working instantly and automatically when the power is switched off, which can guarantee the safety of climbers timely and effective.
The LED screen will show the voltage and electric percentage automatically and circularly when the power is switched on. The battery power status will be visually displayed.
4. Limit Switch
Turn on the power switch and press the "up" key, the motor starts to rotate, and the rope ascender device starts to bring the rope in or rise up.
When the rope or some other object is close to the limit switch ( the distance is about 10-20cm), the device will stop working and avoid approaching the object. And in the same while, the device will stop to fix in a safe position when it lifts the climber or the heavy objects in height. Which will prevent being collided. This function can also prevent the device from working after reach to the top of the height, which can effectively prevent potential hazards.
5. The rope of the Ascender Device
14mm special rope for rope access Ascender Device must be selected well.
The rope head is specially processed, and designed by our company. The rope can enter and exit the Device freely without jamming.
Please note: the rope must be matched with the rope access Ascender Device and shall be well selected. The rope head shall be processed into a conical shape. The rope shall be free of kinks, burn, obvious looseness, corrosion, and other defects.
6. the signal reception and transmission of the remote control
1) The method of the signal copy:
Press the learning key on the receiver ( new spare remote control ), and release it when you see that the indicator light flashes once, and then the indicator light goes out.
Press the "up" key ( on the original remote control ) to send the signal while the light ( on the new spare remote control ) goes out. When you see that the indicator light starts flashing, release the "up" key immediately. After that, the indicator light goes out again.
Press the "down" key (on the original remote control ) to send the signal after the light goes out. When the indicator light flashes again, the whole learning (signal copy ) process is well done.
2) Clearing the codes:
Press the learning key on the receiver ( new spare remote control ) until the indicator light flashes four times and turns into instant flashes. Then released it. After this, the code has been eliminated.
Whereas, if there are any mistakes in the learning (signal copy) procedure, clear the code first and then return to learn again.
Note: this setting has been set well before leaving the factory. Please consult the professional technicians if necessary.
7. How to copy the code of the remote control
1. Clear the code.
Press Key "A" and Key "B" of the new spare remote control. You will see the indicator flashing and going out, and then it will flash continually. Then you can release your hand, the code is cleared successfully.
Generally, the code can be cleared successfully in about 1-2 seconds.
Please note:
1) the indicator light should be flashing continually.
2) After the code is cleared successfully, you can inspect this result. long-press each key, and the indicator light flashes instant and goes off, which means that the code is cleared successfully.
2. To copy the code.
Stick the original remote control and the new spare remote control against each other.
Long press the "up” buttons on the two remote controls. If the indicator light of the new spare remote control is flashing continually, it means that the signal copy is successful, and then release your hand.
In the same way, you can copy the all other 3 keys' codes one by one.
Please note:
1) If the light does not flash when copying the signal, press the keys on both remote controls and change the touching positions of the two remote controls, such as head to head or back to back.
2) When the signal light has been flashing continually, the signal has been copied successfully.
3) If the signal is copied successfully, the light will be on continually when pressing any key.
8. Operation of the rope entrance-exit, and the device ascending-descending
1) Check whether the shell of the ascender device is intact, whether the voltage and power of the battery are normal;
2) Turn on the remote control switch and check whether the battery is normally charged;
3) Ensure that the higher altitude rope is fixed safely and firmly before use;
4) Put the rope into the entrance and press the "up" key. The rope will automatically enter the ascender entrance and come out of the ascender exit.
( Please note: If the rope or some other objects touch or be near the limit switch ( the distance is 10-20cm), it will stop the rope enter the ascender device entrance. So, when the rope is entering the ascender device, please do keep nothing touching or near the limit switch ( the distance is 20cm);
5) The "up" and "down" keys on the remote control can lead the device to ascend or descend. If you release your hands, the power and the device will be cut off and stop automatically, which can ensure the safety of the lifted climbers or objects without sliding in the height;
6) During the ascending process, when there is some object close to the limit switch ( the distance is 20cm), the machine will stop working automatically. After the object is removed, the device will work continuously;
7) The standard environment temperature of the PESCO Rope Access Power Ascender Descender Device application is -25 ℃ to 40℃. The designed maximum loading capacity of the device is ≤ 225kg, and the actual safety loading weight is as the followings:
Model PSJ120-8:
The size: 370mm*255mmm*275mm,
The Weight: 11.5kg,
The Power: 500W
The Voltage: 36V,
The Battery Capacity: 15Ah (IEC 62133),
Maximum Safe Lifting: ≤ 120kg,
Maximum Speed: ≤ 8m/ min,
Remote Control: Yes
automatic lock when switch off: Yes.
Including the device*1, 14mm* 20m rope*1, remote control*2, Charger*1, D-Shape Climbing Lock*1
The actual standard test case: One person's standard weight (about 80-90 kgs) loading up+down totally 500m for 100% capacity.
*Special Reminder*
Preparation: The device operates normally, the ropes are all safe, all parts are normal,
Overloading is strictly prohibited.
Danger Under The Device
It is easy to change over from descend to ascend using PetrolSteel Ascender, and easy to change over from ascend to descend, it is easy for operators to do pre-use checking for using PetrolSteel Power Ascenders, it is easy to use rope access anchors with PetrolSteel Power Ascenders, it is easy to be compatible Ropes for Rope Access Using PetrolSteel Ascender
Applications of PESCO Rope Access Power Ascender Descender Device: Power Utilities, Oil & Gas, Offshore Material Lifting Solution, Wind Tower Access, Cell Tower Access, Arborcare, Entertainment Rigging, Construction, Building Maintenance, SPRAT IRATA rope access work support, Confined Space, Sports Recreation, Climbing Ascender, Climbing descender, airborne ascender, airborne descender
The parts of the PESCO Rope Access Power Ascender Descender Device:
Super Strong Nylon Fiber
Wear Resistant, Smooth, Twist Resistant
Lithium Battery Power Charge
Remote Control
Diameter 14mm
Special Index Sling
The advantages of the PESCO Rope Access Power Ascender Descender Device:
Automatic Lock When Switch off, Super Power, Intelligent Control, Long Endurance, Safer, Faster & Stabler, Portable, Lightweight & powerful
The 12.5mm version is for the main climbing wire and the 11mm is for the fall arrest wire. This rope has a braided sheath (jacket) on the core (core), and the core is made of parallel untwisted fibers. Static ropes have low stretch (3% to 5% stretch). The core bundle contributes to most of the strength of the rope. The load-bearing fibers are located inside the rope and are protected from abrasion by a tightly woven sheath. The core bundles are continuous in length and run in parallel, which not only reduces stretching but also eliminates rotation when in the air.
Currently, static structures are the ropes of choice in most rescue situations due to their better control. A stationary mantle is the best choice for climbing or ascending a fixed line, or for rescue descents and ascents.
The 12.5mm version is for the main climbing wire and the 11mm is for the fall arrest wire. This rope has a braided sheath (jacket) on the core (core), and the core is made of parallel untwisted fibers. Static ropes have low stretch (3% to 5% stretch). The core bundle contributes to most of the strength of the rope. The load-bearing fibers are located inside the rope and are protected from abrasion by a tightly woven sheath. The core bundles are continuous in length and run in parallel, which not only reduces stretching but also eliminates rotation when in the air.
Currently, static structures are the ropes of choice in most rescue situations due to their better control. A stationary mantle is the best choice for climbing or ascending a fixed line, or for rescue descents and ascents.
The Process of Using Instruction of PESCO Rope Access Power Ascender Descender Device
1. Installation & Disassembly of The Battery
The red shell is the cover of the battery compartment.
Hook the edge of the shell with your fingers, and then slide the compartment cover and open it.
Plug the battery charging head into the charging port of the battery compartment, fix it with screws, plug the battery power exit into the socket of the device, and put the battery pack into the battery compartment. Then, install the battery pressing plate, tighten the screws, and cover the shell.
2. Charging
The lithium battery charger is 36V. Plug the charger into the device, and then plug the charger into the 220V power supply.
It is charging when the charger light turns red.
The battery is completely charged when the charger light turns green and the charging will stop automatically.
Please note: the charging time is generally about 4-6 hours. Do not charge for too long a time.

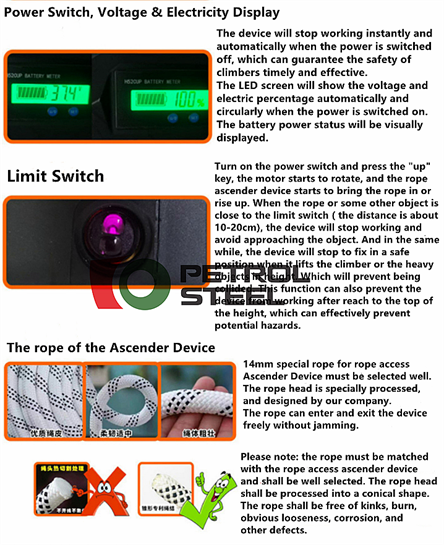

3. Power Switch, Voltage & Electricity Display
The device will stop working instantly and automatically when the power is switched off, which can guarantee the safety of climbers timely and effective.
The LED screen will show the voltage and electric percentage automatically and circularly when the power is switched on. The battery power status will be visually displayed.
4. Limit Switch
Turn on the power switch and press the "up" key, the motor starts to rotate, and the rope ascender device starts to bring the rope in or rise up.
When the rope or some other object is close to the limit switch ( the distance is about 10-20cm), the device will stop working and avoid approaching the object. And in the same while, the device will stop to fix in a safe position when it lifts the climber or the heavy objects in height. Which will prevent being collided. This function can also prevent the device from working after reach to the top of the height, which can effectively prevent potential hazards.
5. The rope of the Ascender Device
14mm special rope for rope access Ascender Device must be selected well.
The rope head is specially processed, and designed by our company. The rope can enter and exit the Device freely without jamming.
Please note: the rope must be matched with the rope access Ascender Device and shall be well selected. The rope head shall be processed into a conical shape. The rope shall be free of kinks, burn, obvious looseness, corrosion, and other defects.
6. the signal reception and transmission of the remote control
1) The method of the signal copy:
Press the learning key on the receiver ( new spare remote control ), and release it when you see that the indicator light flashes once, and then the indicator light goes out.
Press the "up" key ( on the original remote control ) to send the signal while the light ( on the new spare remote control ) goes out. When you see that the indicator light starts flashing, release the "up" key immediately. After that, the indicator light goes out again.
Press the "down" key (on the original remote control ) to send the signal after the light goes out. When the indicator light flashes again, the whole learning (signal copy ) process is well done.
2) Clearing the codes:
Press the learning key on the receiver ( new spare remote control ) until the indicator light flashes four times and turns into instant flashes. Then released it. After this, the code has been eliminated.
Whereas, if there are any mistakes in the learning (signal copy) procedure, clear the code first and then return to learn again.
Note: this setting has been set well before leaving the factory. Please consult the professional technicians if necessary.
7. How to copy the code of the remote control
1. Clear the code.
Press Key "A" and Key "B" of the new spare remote control. You will see the indicator flashing and going out, and then it will flash continually. Then you can release your hand, the code is cleared successfully.
Generally, the code can be cleared successfully in about 1-2 seconds.
Please note:
1) the indicator light should be flashing continually.
2) After the code is cleared successfully, you can inspect this result. long-press each key, and the indicator light flashes instant and goes off, which means that the code is cleared successfully.
2. To copy the code.
Stick the original remote control and the new spare remote control against each other.
Long press the "up” buttons on the two remote controls. If the indicator light of the new spare remote control is flashing continually, it means that the signal copy is successful, and then release your hand.
In the same way, you can copy the all other 3 keys' codes one by one.
Please note:
1) If the light does not flash when copying the signal, press the keys on both remote controls and change the touching positions of the two remote controls, such as head to head or back to back.
2) When the signal light has been flashing continually, the signal has been copied successfully.
3) If the signal is copied successfully, the light will be on continually when pressing any key.
8. Operation of the rope entrance-exit, and the device ascending-descending
1) Check whether the shell of the ascender device is intact, whether the voltage and power of the battery are normal;
2) Turn on the remote control switch and check whether the battery is normally charged;
3) Ensure that the higher altitude rope is fixed safely and firmly before use;
4) Put the rope into the entrance and press the "up" key. The rope will automatically enter the ascender entrance and come out of the ascender exit.
( Please note: If the rope or some other objects touch or be near the limit switch ( the distance is 10-20cm), it will stop the rope enter the ascender device entrance. So, when the rope is entering the ascender device, please do keep nothing touching or near the limit switch ( the distance is 20cm);
5) The "up" and "down" keys on the remote control can lead the device to ascend or descend. If you release your hands, the power and the device will be cut off and stop automatically, which can ensure the safety of the lifted climbers or objects without sliding in the height;
6) During the ascending process, when there is some object close to the limit switch ( the distance is 20cm), the machine will stop working automatically. After the object is removed, the device will work continuously;
7) The standard environment temperature of the PESCO Rope Access Power Ascender Descender Device application is -25 ℃ to 40℃. The designed maximum loading capacity of the device is ≤ 225kg, and the actual safety loading weight is as the followings:
Model PSJ120-8:
The size: 370mm*255mmm*275mm,
The Weight: 11.5kg,
The Power: 500W
The Voltage: 36V,
The Battery Capacity: 15Ah (IEC 62133),
Maximum Safe Lifting: ≤ 120kg,
Maximum Speed: ≤ 8m/ min,
Remote Control: Yes
automatic lock when switch off: Yes.
Including the device*1, 14mm* 20m rope*1, remote control*2, Charger*1, D-Shape Climbing Lock*1
The actual standard test case: One person's standard weight (about 80-90 kgs) loading up+down totally 500m for 100% capacity.
Model PSJ120-11:
The size: 370mm*255mmm*275mm,
The Weight: 12.5kg,
The Power: 500W
The Voltage: 36V,
The Battery Capacity: 20Ah (IEC 62133),
Maximum Safe Lifting: ≤120kg,
Maximum Speed: ≤11m/min,
Remote Control: Yes
Automatic Lock When Switch Off: Yes.
Including the device*1, 14mm* 20m rope*1, remote control*2, Charger*1, D-Shape Climbing Lock*1
The actual standard test case: One person's standard weight (about 80-90 kgs) loading up+down totally 600m for 100% capacity.
Model PSJ120-14:
The size: 370mm*255mmm*275mm,
The Weight: 12.5kg,
The Power: 600W
The Voltage: 36V,
The Battery Capacity: 20Ah (IEC 62133),
Maximum Safe Lifting: ≤150kg,
Maximum Speed: ≤14m/min,
Automatic Lock When Switch Off: Yes.
Including the device*1, 14mm* 20m rope*1, remote control*2, Charger*1, D-Shape Climbing Lock*1
The actual standard test case: One person's standard weight (about 80-90 kgs) loading up+down totally 700m for 100% capacity.
*Special Reminder*
Preparation: The device operates normally, the ropes are all safe, all parts are normal,
Overloading is strictly prohibited.
Danger Under The Device
Rainproof Rainy day work is prohibited
For more recommendations and choices on the PESCO Rope Access Power Ascender Descender Device, please send us the inquiry, you will get a quick reply soon.
