Material Tin Bronze, Aluminium Bronze, Manganese Bronze, Silicon Bronze

Standards DIN, JIS, ASME/EN as applicable

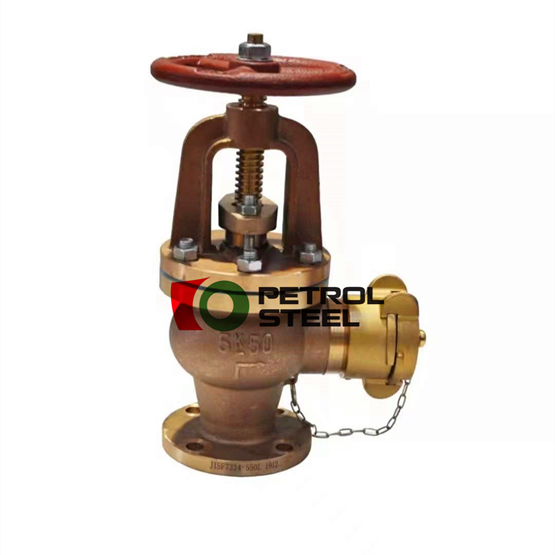

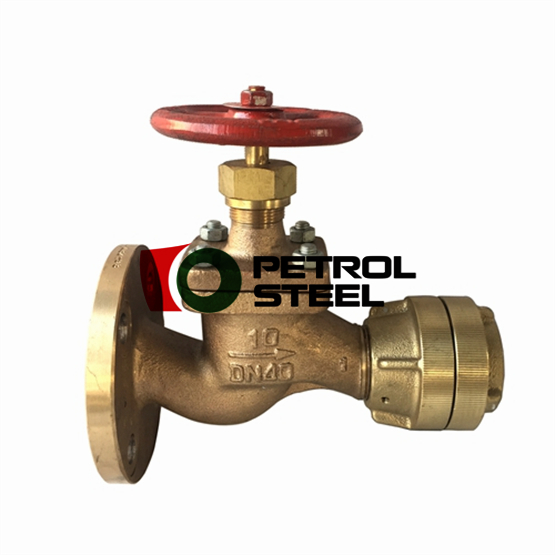

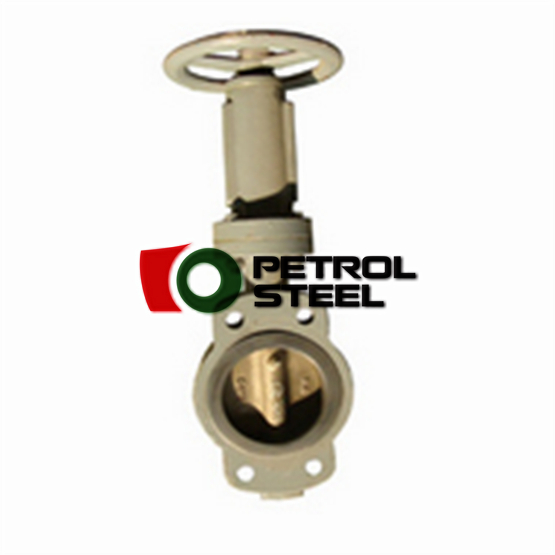

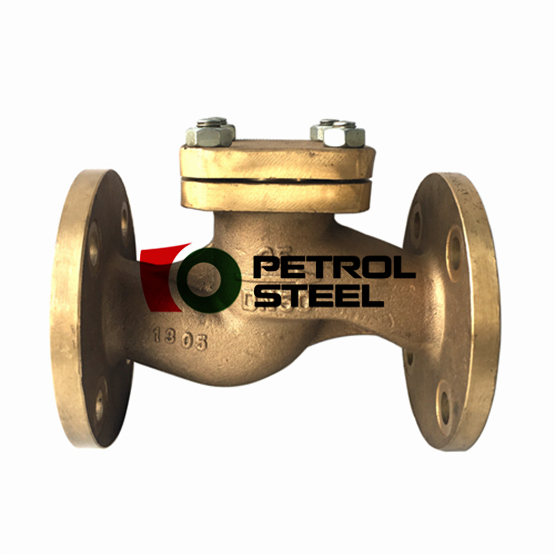

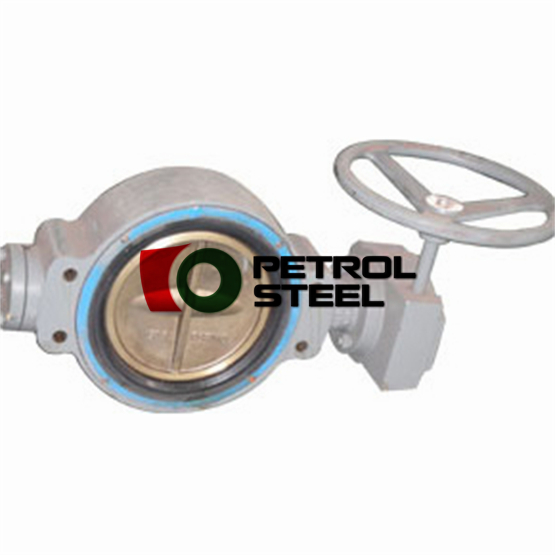

Valve Types Gate, Globe, Check, Ball, Butterfly, Quick-Closing, Drain & Storm Valves

Applications Shipbuilding, Marine Piping, Offshore, FPSO, LNG Carriers, Seawater Systems

Description

DIN AISI JIS Marine Bronze Valves Supplier & Manufacturer

PETROL STEEL CO., LTD. offers Marine Bronze Valves of DIN, AISI, and JIS for international shipbuilding, offshore, marine piping, and EPC projects. The product range consists of bronze gate valves, globe valves, check valves, ball valves, butterfly valves, drain valves, storm valves, quick-closing valves, plug valves, hose valves, and related marine bronze valve products. Valves can be supplied in Tin Bronze, Aluminum Bronze, Manganese Bronze, and Silicon Bronze depending on the specified design, service condition, and applicable standard, including commonly specified grades such as C83600, C84400, C90500, C95400, and C95800. Common marine piping systems are available in threaded, flanged, and wafer-end configurations with dimensions, pressure ratings, and connections reviewed against the project specification prior to quotation. The key issue for international buyers is not whether a supplier can supply a bronze valve, but whether the supplier can deliver the required material, valve type, connection, standard, inspection, and documentation that match the actual purchase specification.

Specifications are assuming an increasing role in the marine valve market. Shipyards, vessel owners, marine contractors, and EPC procurement teams are not buying bronze valves based on nominal size or price; they are comparing material grades, pressure class, end connection, face-to-face dimensions, pressure testing, leakage requirements, documentation, and, where applicable, third-party or classification inspection. Public industry and trade data for 2025–2026 continues to reflect a strong international demand for marine valves, while JIS marine bronze valve models like F7301, F7303, F7351, F7367, and F7399 continue to be seen in international supply channels. Thus, PETROL STEEL bases its offer of Marine Bronze Valves on technical conformity and project execution, and not on generic statements such as "best quality" or "lowest price."

Marine Bronze Valve Range for Shipbuilding & Offshore Piping

PETROL STEEL supplies Marine Bronze Valves for systems where corrosion resistance, reliable shut-off, and compatibility with marine piping service are important. Typical applications are seawater cooling, ballast water, firefighting, deck wash, bilge drainage, overboard discharge, seawater circulation, utility water, and other marine fluid systems. Depending on the project, the supply scope may include bronze gate valves for isolation, globe and screw-down non-return valves for flow control and preventing reverse flow, check valves for non-return service, ball valves for compact shut-off applications, butterfly valves for larger pipe sizes, and dedicated marine valves such as storm valves, sounding valves, drain valves, and quick-closing valves.

The product scope is configurable to DIN, JIS, and applicable ASME/EN requirements. JIS marine valve specifications are especially relevant to Asian shipbuilding and marine equipment supply chains. JIS marine bronze valve products commonly available in the international market are models such as JIS F7301, F7302, F7303, F7304, F7351, F7352, F7367, F7368, and F7399 with specific pressure classes and size ranges depending on the valve design. Public supplier listings show that these JIS bronze marine valve models are still being actively offered internationally. Rather than assuming that a general-purpose bronze valve is interchangeable with a marine specification valve, PETROL STEEL can review the exact model, drawing, valve schedule, or purchase specification prior to quotation.

Materials, Standards, and Manufacturing Capability

Material selection is an important part of the procurement of marine bronze valves. PETROL STEEL can supply the valves in Tin Bronze, Aluminum Bronze, Manganese Bronze and Silicon Bronze as per the designed and service conditions. Typical material grades requested are C83600, C84400, C90500, C95400, and C95800, depending on the valve construction and material specification applicable. The technical review looks at the valve body and other pressure-containing components separately from stems, seats, seals, and other internal parts, as the correct material combination depends on the valve design and operating environment. For seawater and offshore applications, always check the material specification against the actual medium, temperature, pressure, corrosion conditions, and applicable project requirements.

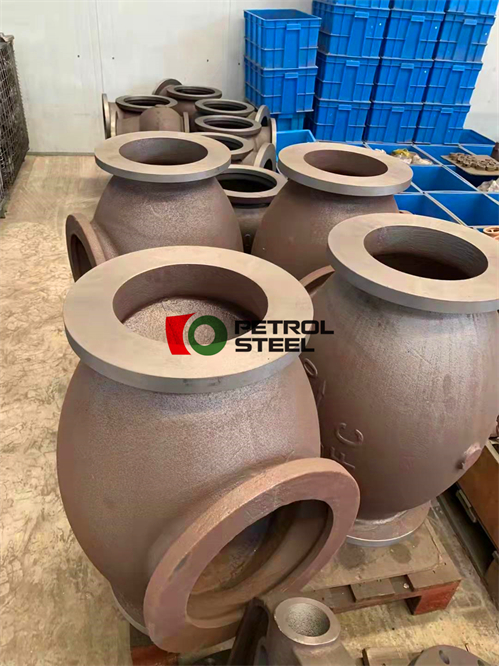

Manufacturing may include casting, investment or shell molding, if applicable, heat treating or refining requirements for the specified alloy, CNC machining, dimensional finishing, assembly, and functional testing. PETROL STEEL also uses qualified manufacturing resources that can support customized and non-standard marine valve requirements, including advanced digital design and additive manufacturing resources for special development work where technically appropriate. The idea is not to use high-tech equipment as a marketing slogan but to offer a real process from drawing review → material confirmation → manufacturing → machining → assembly → inspection → export documentation. This approach is especially useful when an EPC contractor or shipyard submits an existing valve drawing or obsolete model and needs an equivalent or replacement supply.

Technical Scope for EPC and Project Procurement

PETROL STEEL offers Marine Bronze Valves in DIN, JIS, and applicable ASME configurations, including gate, globe, check, ball, butterfly, drain, and quick-closing valves for shipbuilding, offshore, and marine piping projects. They come in threaded, flanged, and wafer-end designs in the marine sizes and pressure classes that are most often required. Valve dimensions, materials, connections, testing, and inspection documentation can be matched to the applicable DIN, EN, JIS, ASME/API, or project specification. Custom specifications, replacement valves, OEM drawings, and EPC project requirements can be taken into consideration before quotation.

For procurement teams, the technical review may include valve type, nominal size, pressure class, material grade, end connection, face-to-face dimension, flange drilling, thread form, operating arrangement, sealing material, testing requirements, and required inspection documentation. This gives the buyer a clear route to establish whether the proposed valve is technically fit for purpose before the commercial terms are finalized. PETROL STEEL can use the valve schedule, MTO, datasheet, drawing, or previous purchase reference provided by the buyer as the basis for a technical and commercial quotation.

Technical Specifications — Marine Bronze Valves
Parameter	Technical Specification
Product Type	Marine Bronze Valves
Valve Types	Gate Valve, Globe Valve, Check Valve, Ball Valve, Butterfly Valve, Drain Valve, Storm Valve, Quick-Closing Valve, Plug Valve, Strainer, and related marine valve configurations
Body / Main Materials	Tin Bronze, Aluminum Bronze, Manganese Bronze, Silicon Bronze
Available Copper Alloy Grades	C83600, C84400, C90500, C95400, C95800, and other specified copper-alloy grades, subject to valve type and applicable material standard
Valve Stem / Seat / Seal	Bronze-alloy valve stem; PTFE / bronze seat; NBR or EPDM sealing elements, according to valve design and service requirements
Nominal Size	Threaded: DN6–DN50 (1/8"–2")
	Flanged: DN15–DN300 (1/2"–12")
	Wafer: DN50–DN600 (2"–24")
Common Sizes	DN15, DN20, DN25, DN32, DN40, DN50, DN65, DN80, DN100, DN150, and DN200
Pressure Rating	PN10, PN16, JIS 5K, JIS 10K, JIS 16K, and ASME Class 150 configurations, subject to valve type and design
End Connections	Threaded / Screwed, Flanged, Wafer and other configurations according to valve type and project specification
Thread Standards	ISO 7-1 (BSPT), ISO 228-1 (BSPP), ASME B1.20.1 (NPT), as specified
Flange Standards	DIN EN 1092-1, JIS B2220, and ASME B16.5, according to required pressure class and valve configuration
Face-to-Face / End-to-End Dimensions	According to the applicable valve dimensional standard and valve type, typical reference standards include DIN 3202, JIS B2002, EN 558, and API 609, where applicable.
Manufacturing Process	Casting, CNC machining, assembly, and surface treatment according to valve type, material, and project requirements
Casting Process	Sand casting, investment casting/shell molding, and other applicable copper-alloy casting processes
Machining	CNC machining of valve body, sealing surfaces, stem, connection, and other critical components

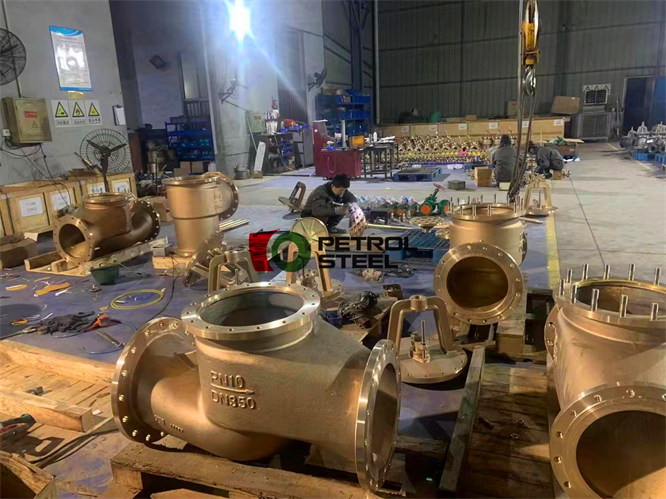

Assembly	Manual assembly with functional and torque checks according to valve design
Surface Treatment	Polishing, blasting, nickel plating, tin plating, or external coating, when specified
Wall Thickness	Designed according to the applicable valve standard, pressure-temperature rating, material, and valve configuration
Corrosion Protection	Bronze alloy construction provides inherent corrosion resistance; additional surface protection can be specified according to service, storage, and marine environmental requirements.
Pressure Testing	Shell and seat/closure testing according to the applicable EN 12266-1, JIS B2003, API 598, or project-specific requirements
Material Inspection	Chemical composition verification and material inspection; mechanical testing where required by the applicable material specification or purchase order
Non-Destructive Testing	PT (Liquid Penetrant Testing), MT where applicable, and UT for specified components/valve sizes according to project requirements
Dimensional Inspection	Dimensional inspection using calibrated measuring equipment, thread gauges, flange gauges, and CMM where required
Material Documentation	EN 10204 3.1 / 3.2 documentation is available when specified in the purchase order.
Third-Party / Classification Inspection	Third-party inspection and classification society witnessing can be arranged according to project requirements and applicable product scope.
Applicable Design / Manufacturing Standards	DIN, EN, JIS, and ASME standards according to valve type and project specification
Marine Valve Standards	Applicable JIS F7300-series and other marine valve standards according to valve type and required configuration
Testing Standards	EN 12266-1, JIS B2003, API 598, or project-specified testing requirements
Classification Requirements	DNV, ABS, BV, LR, CCS, NK, and KR requirements can be coordinated where applicable and subject to project/product scope.
Packaging	Protective wrapping for individual valves; end/flange protection; export cartons or fumigation-free export wooden cases according to valve size and shipment requirements
Export Marking	Product marking and shipping marks can include DN, pressure rating, material/grade, standard, PO/project number, and destination requirements.
Applications	Shipbuilding, marine piping, offshore platforms, FPSO, LNG carriers, naval vessels, seawater cooling, ballast water, firefighting, deck washing, bilge, and other marine utility systems

Inspection & Quality Control

PETROL STEEL sees inspection as part of the supply scope and not as a final marketing statement. Marine Bronze Valves shall be inspected in accordance with the applicable valve standard, purchase specification, and project ITP and shall include material verification, chemical composition, casting quality, dimensional inspection, thread or flange inspection, shell pressure testing, seat leakage testing, and functional checks as applicable to the valve design. Additionally, NDT such as PT or UT can be arranged for critical marine and offshore applications when required by the material, size, design, or project specification.

We support all orders with internal QC coordination and third-party inspection as per project requirements. Documentation can include material certificates, pressure test reports, dimensional inspection records, and EN 10204 3.1 or 3.2 documentation if specified. Where applicable, project or vessel specifications require coordination, which may also be arranged with classification society witnessing or inspection, including DNV, ABS, BV, LR, CCS, NK, or KR. This inspection method allows the buyer to check not only the bronze alloy but also the pressure integrity, sealing performance, dimensional conformity, connection accuracy, and completeness of documentation prior to shipping.

Why International Buyers Work with PETROL STEEL

Marine bronze valve procurement delivery reliability is not only dependent on manufacturing capacity. PETROL STEEL has been supplying DIN, AISI, and JIS Marine Bronze Valves to international customers for over 10 years and offers a project-oriented support structure, including technical review, international trade coordination, QC inspection, and export logistics. The technical team has over 10 years of industry experience, the international trade and marketing team has over 20 years of experience, and the QC and logistics team has an average of over 15 years of relevant experience. This means that the buyer can talk to one supply team from RFQ review through documentation, inspection, packing, and shipment.

The normal lead time for delivery is usually 3-5 weeks, subject to the type of valve, material, quantity, inspection requirements, and order confirmation. PETROL STEEL doesn't just say "fast" delivery. They lay out a more transparent project process: review RFQ and technical documents, confirm material and specification, check manufacturing feasibility and delivery schedule, coordinate inspection and documentation, and arrange export packing and shipment. Products can be packed with sufficient protection for international transport, with valve ends protected from contamination and damage, and export documentation done as per the purchase requirements agreed upon. If urgent or replacement requirements are identified, the buyer can state the required delivery date in the RFQ to allow for review of manufacturing and logistics options prior to quotation.

A Marine Valve Supply Partner for Global EPC Projects

PETROL STEEL appreciates that in a larger EPC, shipbuilding, or offshore package, Marine Bronze Valves can seem a relatively small item, but specifying the wrong valve can create disproportionate problems on inspection, installation, or commissioning. That’s why our supply approach is built on specification matching, inspection visibility, and documentation control. We aim to provide EPC procurement managers, shipyards, marine contractors, valve distributors, and importers with a dependable source of DIN, AISI, and JIS marine bronze valves while adhering to the technical discipline necessary for global engineering projects.

PETROL STEEL's larger business continues to focus on the supply of industrial piping and equipment for international EPC and energy projects. Marine bronze valves complement this core capability and serve marine, offshore, shipbuilding, and related piping applications rather than changing the company’s primary positioning. PETROL STEEL has over 10 years of export experience for this product range, has established technical and QC resources, and has a project-based approach to inspection and documentation to support both standard marine valve requirements and technically specified RFQs. The company’s declared supply record for this line of product is zero major claims, with internal QC coordination and third-party inspection in accordance with project requirements.

The production of PESCO DIN AISI JIS Bronze Sea Valves by PETROL STEEL CO., LTD has been approved by CCS, LR, BV, ABS, DNV, GL, NK, KR, and other international classification societies. Our company annually produces more than 200,000 sets of marine bronze valves and marine bronze fittings. After continuous innovation and development, PETROL STEEL CO., LTD has become one of the most famous valve brands in China. We take it as our duty to continuously improve product quality and meet customer needs, use our own efforts to gain credibility for the enterprise, and open up space for enterprise development by pursuing perfect product quality, strictly following the PDCA management rules, and sincerely adhere to "people-oriented, interdependent" We are willing to work together with friends from all walks of life to make China's valve industry take off.

Send Your Drawing or RFQ → PETROL STEEL Technical Team Review → Technical & Commercial Quotation

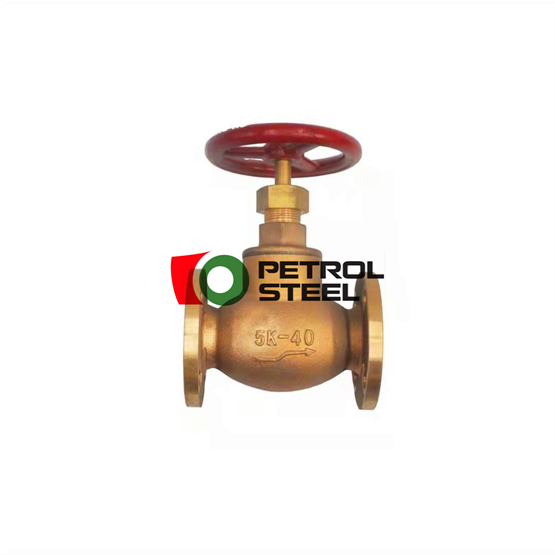

PETROL STEEL can handle the supply process from specification review through to inspection and export delivery for standard JIS F7301 bronze globe valves, DIN marine bronze valves, JIS quick-closing bronze valves, replacement valves for existing vessels, or marine valve packages for a project, reviewing the technical requirements prior to quotation.
